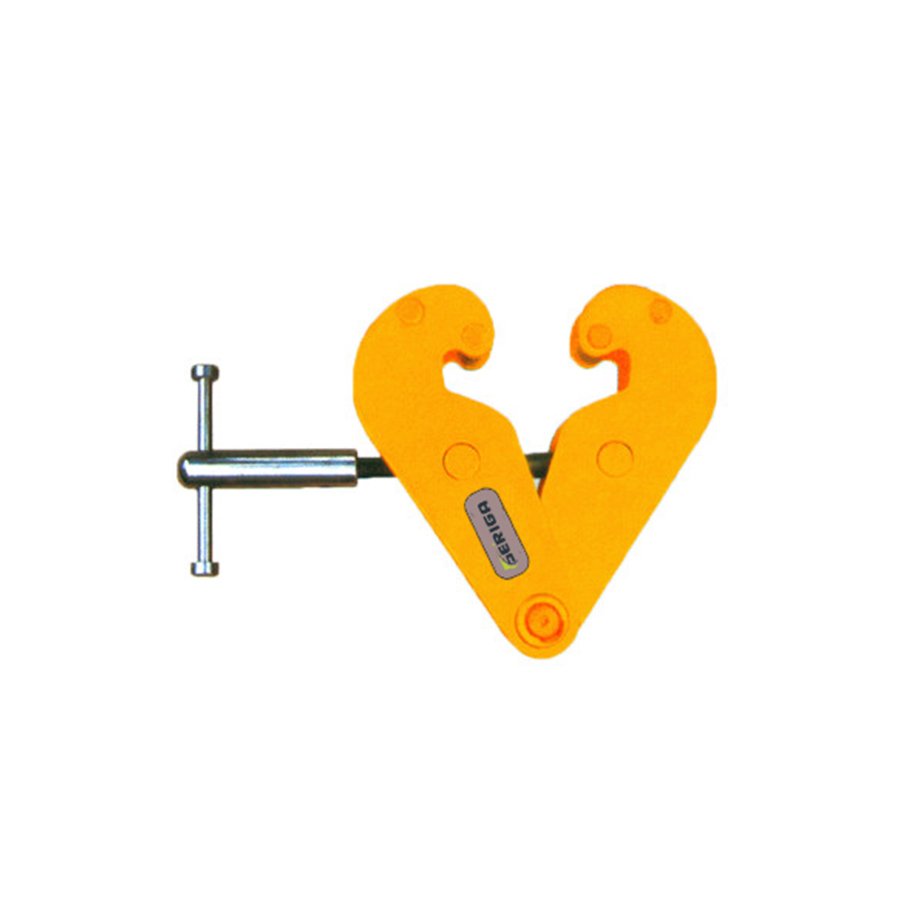

YC Series I-Steel Beam Clamp

3
Your current location:
YC Series I-Steel Beam Clamp

YC Series I-Steel Beam Clamp

Use:Fix on the I steel to support the hoist block equipment.

Load range: 0-5 tons.

It is manufactured by low-carbon hi-quality alloy steel.

Only hang by the single drum,Test load is the max.operation load of 2 times

Usage way:Lock the screw counter-clockwise,and loosen the clamp mouse.

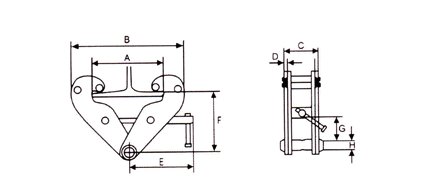

Clamp the inferior border of I-steel as the picture.Lock the screw clockwise to clamp tightly.

Don’t overload to use.

Product Description

Model

WLL ton

Jaw   Opening(mm)

Weight(kg)

YC1

1

75-220

3.8

YC2

2

75-220

4.6

YC3

3

80-320

9

YC5

5

80-320

11

YC10

10

90-320

16
